| Specification | |
|---|---|
| (i) 4G/LTE Antenna | |
| Frequency Range(MHz) | 700MHz,800MHz,900MHz, 1710-1920MHz,2010MHz, 2300-2400MHz,2500-2690MHz |
| Impedance | 50Ω |
| VSWR | ≤2 |
| Gain | 10 dBi |
| Radiation | Omni-directional |
| Polarization Type | Vertical |
| Maximun power lnput-watts | 50W |
| (ii) Mechanical | |

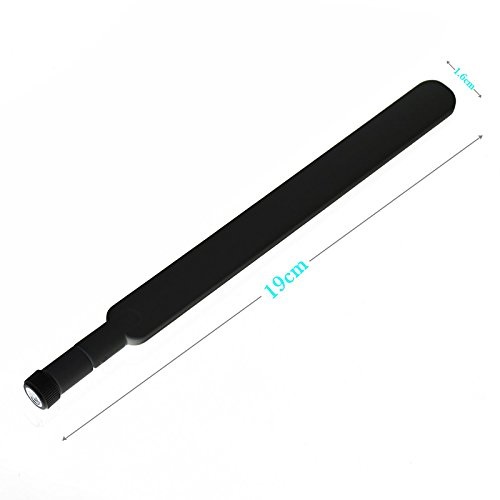

| Size(mm) | Φ13×192 |
| Radome color | Black |
| Radome material | TPE/ABS |

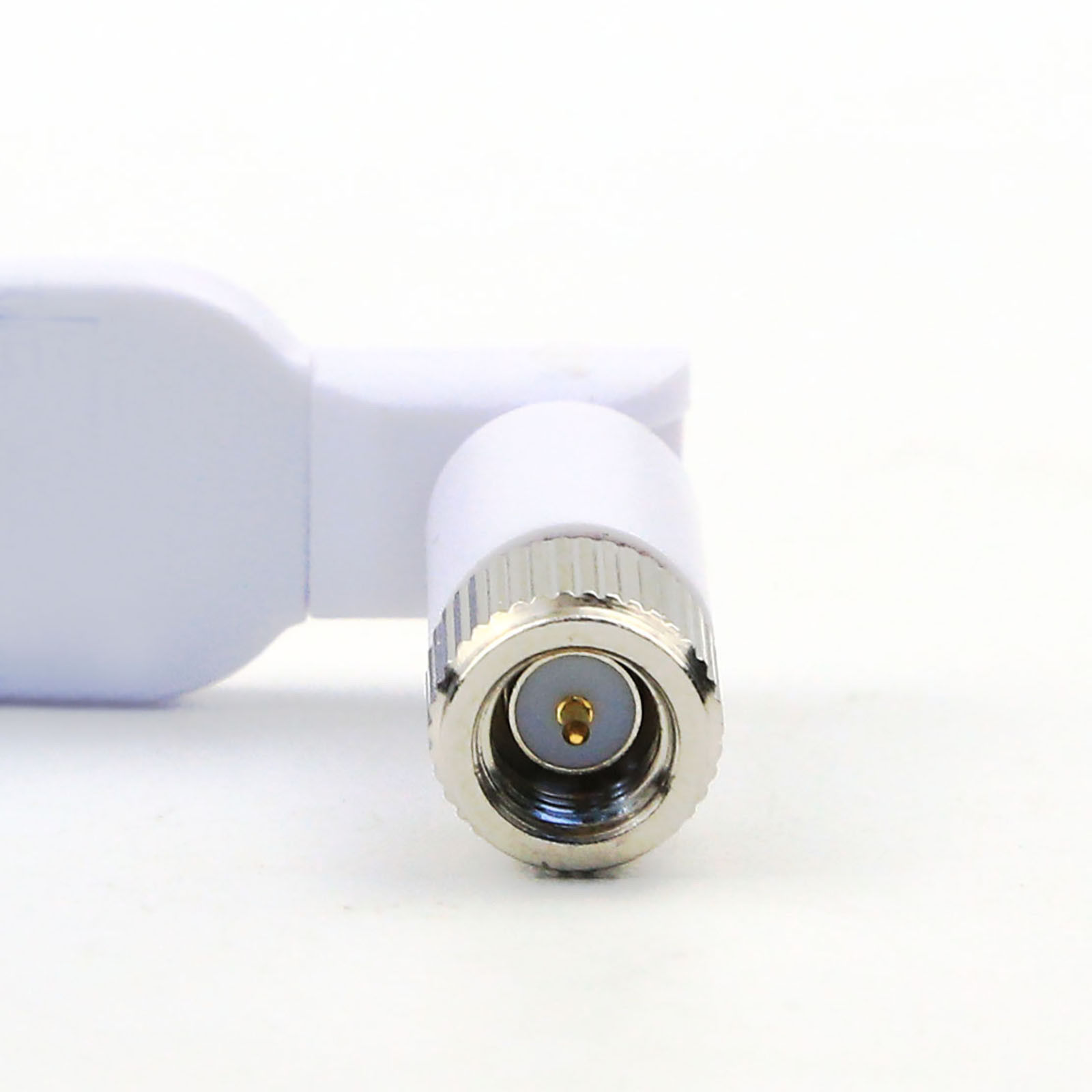

| Optional Connectors | SMA plug straight |
| Weight(g) | 19.2 |
| (iii) Environmental | |
| Working Temp. | -20℃~+85℃ |
| Storage temperature | -40℃~+90℃ |
